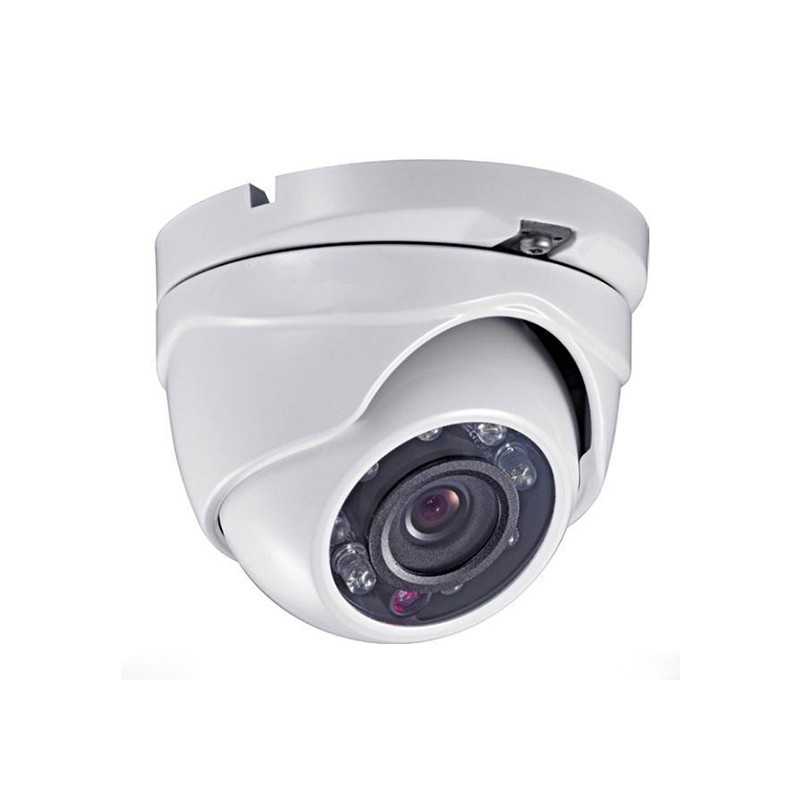

2MP HD-TVI HD1080P Turret Camera- 2.8mm
Camera | Specifications |
Image Sensor | 1/2.7" Progressive Scan CMOS 1/3" Progressive Scan CMOS(only 2.8mm) |
Effective Pixels | 1930(H)×1088(V) |
Min. Illumination | 0.01 lux @F1.2, AGC ON, 0 lux with IR / 0.07 lux @F1.2, AGC ON, 0 lux with IR |
S/N Ratio | More than 52dB |
Synchronization | Internal |
Lens | 2.8mm, 3.6mm, 6mm optional Angle of View: 105.8°(2.8mm), 84.3°(3.6mm), 55.4°(6mm) |
Lens Mount | M12 |
Day & Night | ICR |
Shutter Speed | 1/25(1/30) s to 1/50,000 s |
Automatic Gain Control | Support |
White Balance | Auto/Manual |
Signal System | PAL/NTSC |
Image |
Frame Rate | 1080p@25fps/1080p@30fps |
Digital Noise Reduction | Digital noise reduction, Mirror |
Backlight Compensation | BLC |
Interface |
Communication Interface | Up the coax Protocol: HIKVISION-C(Coaxitron) |
Video Output | 1 turbo HD output |
Camera Features |
Day/Night | Color/ BW/ EXT |
General |
Power Supply | 12V DC |
Power Consumption | Max 3W |
Dimensions | 89.6 × 59.1 mm (3.53” × 2.33”) |
Weight | 240 g (0.53 lb) |
Operating Conditions | -40 °C - 60 °C (-40 °F - 140 °F) |
IR Range | Up to 65ft |
Ingress Protection | IP66 |
Operating Humidity | 95% or less (non-condensing) |
Language | English/ Chinese |
| Product Model: | AC314-MD 2.8mm |
|---|
